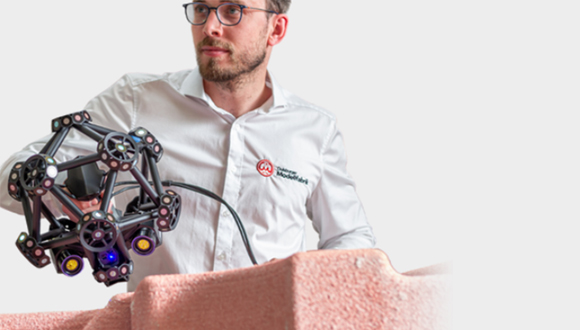

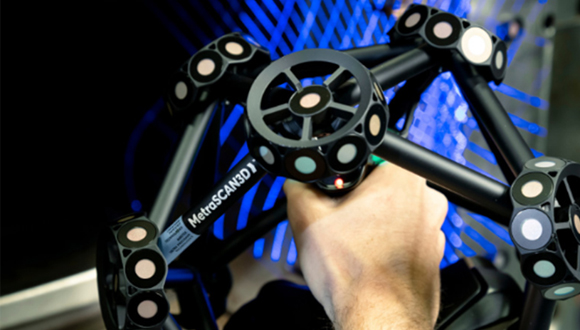

3D Scanner Sales Metra SCAN 3D High-Precision Tracker-Type 3D Scanner
The MetraSCAN 3D optical CMM scanner line-up is specifically designed for manufacturing and metrology professionals who do not want to compromise on quality or efficiency. It can withstand any production environment, including shop floor vibrations, part movements and environmental instability—all while accelerating 3D measurement workflows. This optical CMM scanner has been engineered to perform highly accurate and repeatable metrology-grade measurements and 3D geometrical surface inspections.
When paired with the HandyPROBE, Creaform’s handheld optical coordinate measuring machine (PCMM) with probing capabilities, users can also harness the power of both 3D scanning and probing for complete, end-to-end inspection processes.

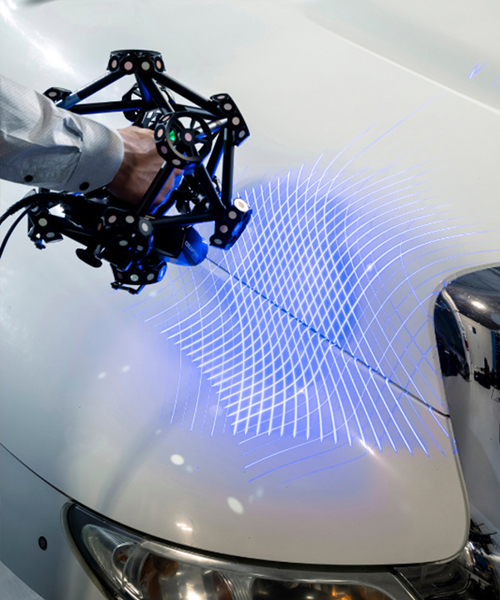

The MetraSCAN 3D features 30 blue laser lines and a high measurement rate to accelerate 3D scanning processes. Thanks to quick setup and onboarding, real-time scans and ready-to-use files, your 3D scanning workflow will never have been faster.
High measurement rate 1,800,000 measurements/second Large scanning area for all types of parts 30 blue laser lines Ultra-quick setup No warm-up time; users can be up-and-running in less than 5 minutes 360° Magnetic Targets For quick and easy setupsOptimized visibility for dynamic tracking
The AVE feature allows for automatic acquisition volume extension only by moving the C-Track, without requiring extra measurements. With its advanced integrated photogrammetry and scaling algorithms, the MetraSCAN 3D ensures more accurate, repeatable, and human-error-free measurements on large parts.
Accuracy 0.025 mm (0.0009 in) Automatic Volume Extension 0.025mm + 0.015mm/m (0.0009in + 0.00018in/ft) Reliable acceptance tests Based on VDI/VDE 2634 Part 3 standard Based on ISO 10360 standard ISO/IEC 17025: 2017 accredited laboratory Shop floor accuracy with dynamic referencing Measurement accuracy insensitive to environmental instabilities High resolution Measures all types of complex and highly detailed parts
Highly versatile, the MetraSCAN 3D can be used to scan various part sizes and surface finishes in real time—all with the same device.

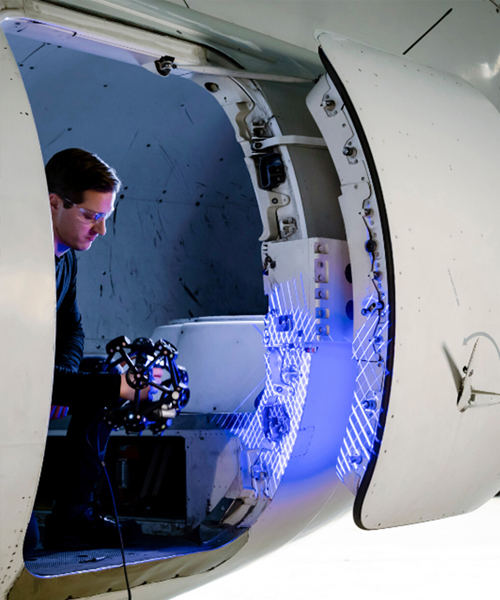

With its extendable measurement volume, parts of any shape, complexity, and geometry can be measured easily without loss in accuracy or requiring leapfrog.

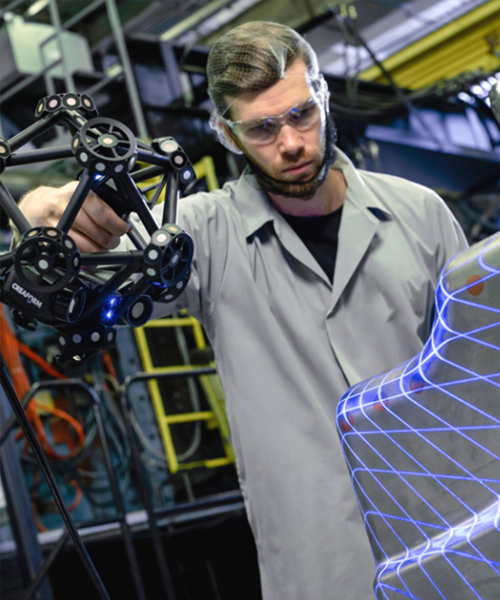

Blue laser technology Ideal for shiny and reflective surfaces Large and easily extendable measurement volume Wider than other portable CMMsNo leapfrog required
Integrated photogrammetry Optional HandyPROBE Combination of both 3D scanning and probing
No targets required New Setup Assistance Tools Guidance volume display
High-level setup diagnostics
