3D Scanner Sales Handy Black Series High-End, High-Precision Laser Scanner
Optimized to meet the needs of design, manufacturing and metrology professionals, the HandySCAN 3D|BLACK Series is a metrology-grade handheld 3D laser scanner built for accurate and reliable 3D measurement across all part sizes, surface types, and materials. It delivers results within seconds, anywhere.
Certified based on the most rigorous industry standards, this fast and versatile handheld 3D scanner is easy to use and captures highly detailed measurements—even under challenging environmental conditions and on complex surfaces.
The HandySCAN 3D|BLACK Series delivers accurate, high-resolution, and repeatable results, regardless of the measurement setup and user experience level. With its high volumetric accuracy, the BLACK Series accurately scans parts of all sizes, from small to large, making it ideal for various applications.
Accuracy 0.025 mm (0.0009 in) Volumetric accuracy 0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft)0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft) with Accu+ Kit Reliable acceptance test Based on VDI/VDE 2634 part 3 standard
Based on ISO 10360 standard
ISO/IEC 17025: 2017 accredited laboratory High resolution for fine details Integrated photogrammetry High accuracy on large measurements with volumetric accuracy optimization
This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.
Lightweight Self-positioning with dynamic referencing Fits into a suitcase Take it anywhere you need

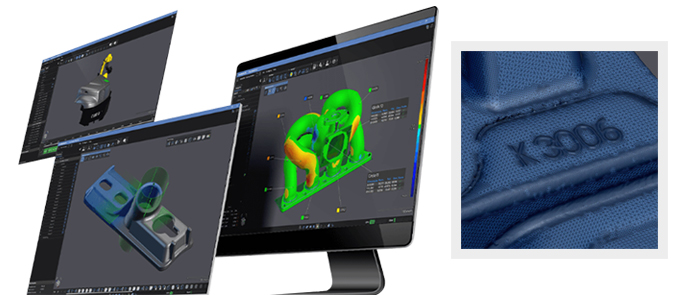

The HandySCAN 3D|BLACK Series supports automatic mesh generation, streamlining the workflow from setup to scan to mesh. Its Flex Volume feature also allows for rapid, high-quality measurements of large parts from a distance and precise scanning of smaller parts at a closer range.
Flexible working distance 200 to 750 mm (7.9 x 29.5 in) for faster acquisition High measurement rate Up to 1,800,000 measurements/s Large scanning area of 30 blue laser lines Quick setup Up-and-running in less than 2 minutes
